Shackles
Screw Pin D Shackle G210
Forged carbon steel Quenched and Tempered D shackles with alloy pins.
WLL Range0.75 - 55 tonnes
Variants15 sizes
StandardBDS-147 screw pin chain shackle conforms to U.S. federal specification RR-C-271D, Type IV A, Class 2. Minimum Ultimate Load is 6 times the Working Load Limit. Maximum Proof Load is 2 times the Working Load Limit.
Important Notes:
- Minimum Ultimate Load (MUL) = 6× WLL
- Maximum Proof Load = 2× WLL
Features
- Forged carbon steel — Quenched and Tempered with alloy pins
- Size, WLL, Trademark and Name permanently shown on each shackle
- All shackles with Batch Code linking to Test Certificate and Quality Traceability
- 100% magnaflux crack detection during manufacturing
- Hot Dip Galvanized
D9.5
B8
A13
S31
H19
P53

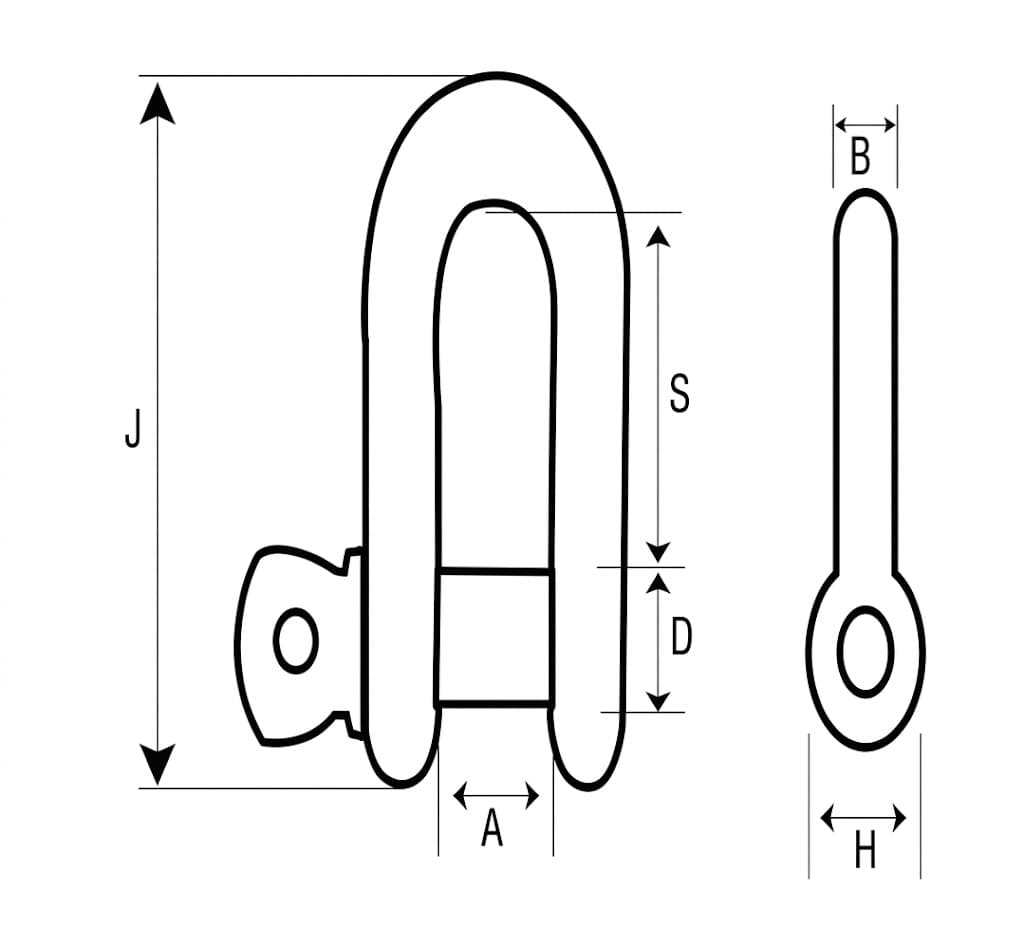

Technical drawing image for the selected product range.
Screw Pin D Shackle G210 Technical Dimensions
Choose a size to inspect key dimensions instantly, then review the full dimensions table below.
15 sizes
WLL (t)
0.75
D (mm)
9.5
B (mm)
8
A (mm)
13
S (mm)
31
H (mm)
19
P (mm)
53
Weight (kg)
0.08
Dimensions Table
Click any row to sync the selector and highlight the cards.
| Item No. | Size (in) | Size (mm) | WLL (t) | D (mm) | B (mm) | A (mm) | S (mm) | H (mm) | P (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| G210-08 | 5/16" | 8 | 0.75 | 9.5 | 8 | 13 | 31 | 19 | 53 | 0.08 |
| G210-10 | 3/8" | 10 | 1 | 11 | 10 | 16 | 36 | 23 | 65 | 0.1 |
| G210-11 | 7/16" | 11 | 1.5 | 13 | 11 | 19 | 43 | 27 | 75 | 0.2 |
| G210-13 | 1/2" | 13 | 2 | 16 | 13 | 20 | 47 | 30 | 85 | 0.3 |
| G210-16 | 5/8" | 16 | 3.25 | 19 | 16 | 27 | 61 | 39 | 107 | 0.6 |
| G210-19 | 3/4" | 19 | 4.75 | 22 | 19 | 33 | 71 | 46 | 126 | 1 |
| G210-22 | 7/8" | 22 | 6.5 | 26 | 22 | 38 | 84 | 53 | 148 | 1.4 |
| G210-26 | 1" | 26 | 8.5 | 28 | 26 | 44 | 93.5 | 60 | 166 | 2.1 |
| G210-28 | 1-1/8" | 28 | 9.5 | 32 | 28 | 46 | 103 | 68 | 190 | 3 |
| G210-32 | 1-1/4" | 32 | 12 | 36 | 32 | 55 | 108 | 76 | 210 | 4.1 |
| G210-36 | 1-3/8" | 36 | 13.5 | 38 | 36 | 57 | 111 | 84 | 232 | 5.6 |
| G210-38 | 1-1/2" | 38 | 17 | 41.4 | 38.1 | 60.5 | 122 | 92 | 234 | 7.23 |
| G210-44 | 1-3/4" | 44 | 25 | 51 | 44.5 | 73 | 146 | 106 | 279 | 12.1 |
| G210-50 | 2" | 50 | 35 | 57 | 51 | 82.5 | 172 | 122 | 312 | 19.2 |
| G210-64 | 2-1/2" | 64 | 55 | 70 | 44.5 | 105 | 203 | 145 | 377 | 32.5 |
