Shackles
Screw Pin Anchor Shackle G209
Carbon steel Quenched and Tempered anchor shackles with alloy pins. Permanently marked with size, WLL, trademark and name.
WLL Range0.75 - 55 tonnes
Variants15 sizes
StandardG209 screw pin anchor shackle conforms to U.S. federal specification RR-C-271D, Type IV A, Class 2. Minimum Ultimate Load is 6 times the Working Load Limit. Maximum Proof Load is 2 times the Working Load Limit.
Important Notes:
- Minimum Ultimate Load (MUL) = 6× WLL
- Maximum Proof Load = 2× WLL
Features
- Carbon steel — Quenched and Tempered with alloy pins
- Size, WLL, Trademark and Name permanently shown on each shackle
- All shackles with Batch Code linking to Test Certificate and Quality Traceability
- 100% magnaflux crack detection during manufacturing
- Hot Dip Galvanized
D9.5
B8
A31
S13
H53
P19
I22

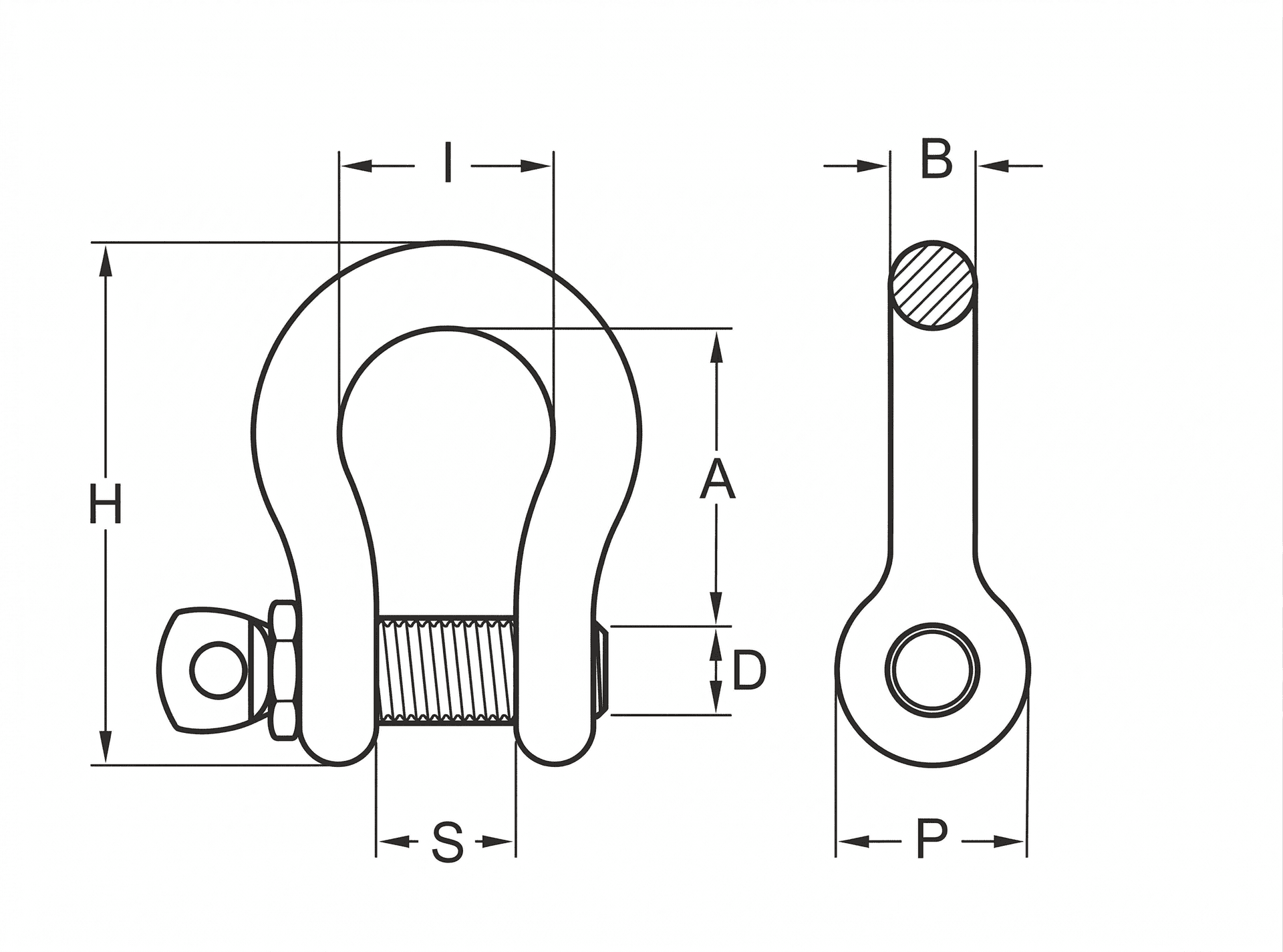

Technical drawing image for the selected product range.
Screw Pin Anchor Shackle G209 Technical Dimensions
Choose a size to inspect key dimensions instantly, then review the full dimensions table below.
15 sizes
WLL (t)
0.75
D (mm)
9.5
B (mm)
8
A (mm)
31
S (mm)
13
H (mm)
53
P (mm)
19
I (mm)
22
Weight (kg)
0.08
Dimensions Table
Click any row to sync the selector and highlight the cards.
| Item No. | Size (in) | Size (mm) | WLL (t) | D (mm) | B (mm) | A (mm) | S (mm) | H (mm) | P (mm) | I (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G209-08 | 5/16" | 8 | 0.75 | 9.5 | 8 | 31 | 13 | 53 | 19 | 22 | 0.08 |
| G209-10 | 3/8" | 10 | 1 | 11 | 10 | 36 | 16 | 65 | 23 | 26 | 0.1 |
| G209-11 | 7/16" | 11 | 1.5 | 13 | 11 | 43 | 19 | 75 | 27 | 30 | 0.2 |
| G209-13 | 1/2" | 13 | 2 | 16 | 13 | 47 | 20 | 85 | 30 | 33 | 0.3 |
| G209-16 | 5/8" | 16 | 3.25 | 19 | 16 | 61 | 27 | 107 | 39 | 45 | 0.6 |
| G209-19 | 3/4" | 19 | 4.75 | 22 | 19 | 71 | 33 | 126 | 46 | 50 | 1.1 |
| G209-22 | 7/8" | 22 | 6.5 | 26 | 22 | 84 | 38 | 148 | 53 | 58 | 1.6 |
| G209-26 | 1" | 26 | 8.5 | 28 | 26 | 95 | 44 | 166 | 60 | 68 | 2.3 |
| G209-28 | 1-1/8" | 28 | 9.5 | 32 | 28 | 108 | 46 | 190 | 68 | 74 | 3.4 |
| G209-32 | 1-1/4" | 32 | 12 | 36 | 32 | 117 | 55 | 205 | 76 | 85 | 4.3 |
| G209-36 | 1-3/8" | 36 | 13.5 | 38 | 36 | 133 | 57 | 232 | 84 | 94 | 6.1 |
| G209-38 | 1-1/2" | 38 | 17 | 41 | 38 | 146 | 60 | 254 | 92 | 99 | 7.8 |
| G209-44 | 1-3/4" | 44 | 25 | 51 | 46 | 178 | 73 | 313 | 106 | 127 | 12.6 |
| G209-50 | 2" | 50 | 35 | 57 | 50 | 197 | 82 | 347 | 122 | 146 | 20.4 |
| G209-64 | 2-1/2" | 64 | 55 | 70 | 69 | 267 | 105 | 453 | 145 | 184 | 38.9 |
Dimensions Table
G209-08
Item No.
G209-08
Size (in)
5/16"
- Size (mm)
- 8
- WLL (t)
- 0.75
- D (mm)
- 9.5
- B (mm)
- 8
- A (mm)
- 31
- S (mm)
- 13
- H (mm)
- 53
- P (mm)
- 19
- I (mm)
- 22
- Weight (kg)
- 0.08
Dimensions Table
G209-10
Item No.
G209-10
Size (in)
3/8"
- Size (mm)
- 10
- WLL (t)
- 1
- D (mm)
- 11
- B (mm)
- 10
- A (mm)
- 36
- S (mm)
- 16
- H (mm)
- 65
- P (mm)
- 23
- I (mm)
- 26
- Weight (kg)
- 0.1
Dimensions Table
G209-11
Item No.
G209-11
Size (in)
7/16"
- Size (mm)
- 11
- WLL (t)
- 1.5
- D (mm)
- 13
- B (mm)
- 11
- A (mm)
- 43
- S (mm)
- 19
- H (mm)
- 75
- P (mm)
- 27
- I (mm)
- 30
- Weight (kg)
- 0.2
Dimensions Table
G209-13
Item No.
G209-13
Size (in)
1/2"
- Size (mm)
- 13
- WLL (t)
- 2
- D (mm)
- 16
- B (mm)
- 13
- A (mm)
- 47
- S (mm)
- 20
- H (mm)
- 85
- P (mm)
- 30
- I (mm)
- 33
- Weight (kg)
- 0.3
Dimensions Table
G209-16
Item No.
G209-16
Size (in)
5/8"
- Size (mm)
- 16
- WLL (t)
- 3.25
- D (mm)
- 19
- B (mm)
- 16
- A (mm)
- 61
- S (mm)
- 27
- H (mm)
- 107
- P (mm)
- 39
- I (mm)
- 45
- Weight (kg)
- 0.6
Dimensions Table
G209-19
Item No.
G209-19
Size (in)
3/4"
- Size (mm)
- 19
- WLL (t)
- 4.75
- D (mm)
- 22
- B (mm)
- 19
- A (mm)
- 71
- S (mm)
- 33
- H (mm)
- 126
- P (mm)
- 46
- I (mm)
- 50
- Weight (kg)
- 1.1
Dimensions Table
G209-22
Item No.
G209-22
Size (in)
7/8"
- Size (mm)
- 22
- WLL (t)
- 6.5
- D (mm)
- 26
- B (mm)
- 22
- A (mm)
- 84
- S (mm)
- 38
- H (mm)
- 148
- P (mm)
- 53
- I (mm)
- 58
- Weight (kg)
- 1.6
Dimensions Table
G209-26
Item No.
G209-26
Size (in)
1"
- Size (mm)
- 26
- WLL (t)
- 8.5
- D (mm)
- 28
- B (mm)
- 26
- A (mm)
- 95
- S (mm)
- 44
- H (mm)
- 166
- P (mm)
- 60
- I (mm)
- 68
- Weight (kg)
- 2.3
Dimensions Table
G209-28
Item No.
G209-28
Size (in)
1-1/8"
- Size (mm)
- 28
- WLL (t)
- 9.5
- D (mm)
- 32
- B (mm)
- 28
- A (mm)
- 108
- S (mm)
- 46
- H (mm)
- 190
- P (mm)
- 68
- I (mm)
- 74
- Weight (kg)
- 3.4
Dimensions Table
G209-32
Item No.
G209-32
Size (in)
1-1/4"
- Size (mm)
- 32
- WLL (t)
- 12
- D (mm)
- 36
- B (mm)
- 32
- A (mm)
- 117
- S (mm)
- 55
- H (mm)
- 205
- P (mm)
- 76
- I (mm)
- 85
- Weight (kg)
- 4.3
Dimensions Table
G209-36
Item No.
G209-36
Size (in)
1-3/8"
- Size (mm)
- 36
- WLL (t)
- 13.5
- D (mm)
- 38
- B (mm)
- 36
- A (mm)
- 133
- S (mm)
- 57
- H (mm)
- 232
- P (mm)
- 84
- I (mm)
- 94
- Weight (kg)
- 6.1
Dimensions Table
G209-38
Item No.
G209-38
Size (in)
1-1/2"
- Size (mm)
- 38
- WLL (t)
- 17
- D (mm)
- 41
- B (mm)
- 38
- A (mm)
- 146
- S (mm)
- 60
- H (mm)
- 254
- P (mm)
- 92
- I (mm)
- 99
- Weight (kg)
- 7.8
Dimensions Table
G209-44
Item No.
G209-44
Size (in)
1-3/4"
- Size (mm)
- 44
- WLL (t)
- 25
- D (mm)
- 51
- B (mm)
- 46
- A (mm)
- 178
- S (mm)
- 73
- H (mm)
- 313
- P (mm)
- 106
- I (mm)
- 127
- Weight (kg)
- 12.6
Dimensions Table
G209-50
Item No.
G209-50
Size (in)
2"
- Size (mm)
- 50
- WLL (t)
- 35
- D (mm)
- 57
- B (mm)
- 50
- A (mm)
- 197
- S (mm)
- 82
- H (mm)
- 347
- P (mm)
- 122
- I (mm)
- 146
- Weight (kg)
- 20.4
Dimensions Table
G209-64
Item No.
G209-64
Size (in)
2-1/2"
- Size (mm)
- 64
- WLL (t)
- 55
- D (mm)
- 70
- B (mm)
- 69
- A (mm)
- 267
- S (mm)
- 105
- H (mm)
- 453
- P (mm)
- 145
- I (mm)
- 184
- Weight (kg)
- 38.9
